PD-0500
Portable Pulse Duplicator System

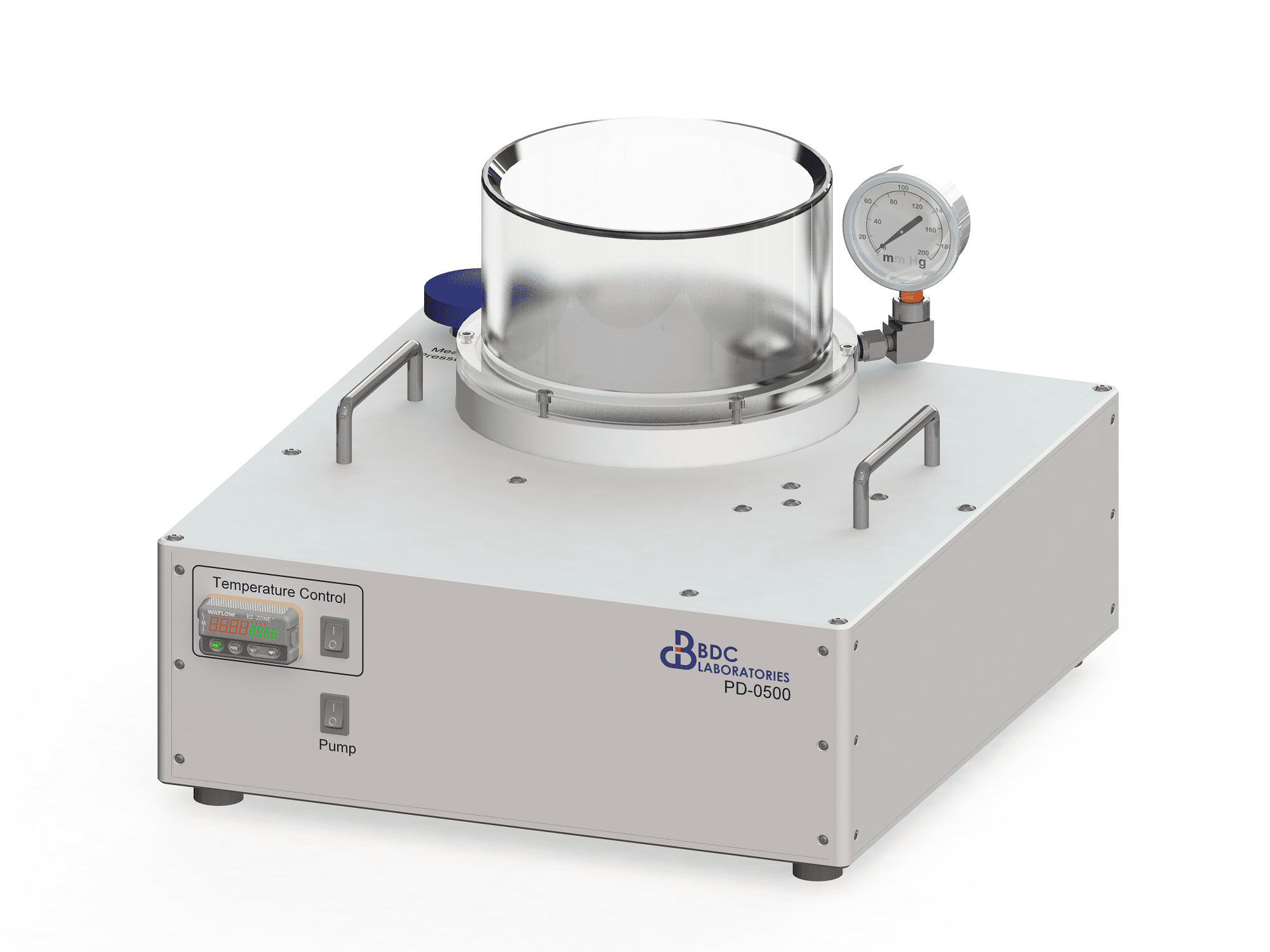

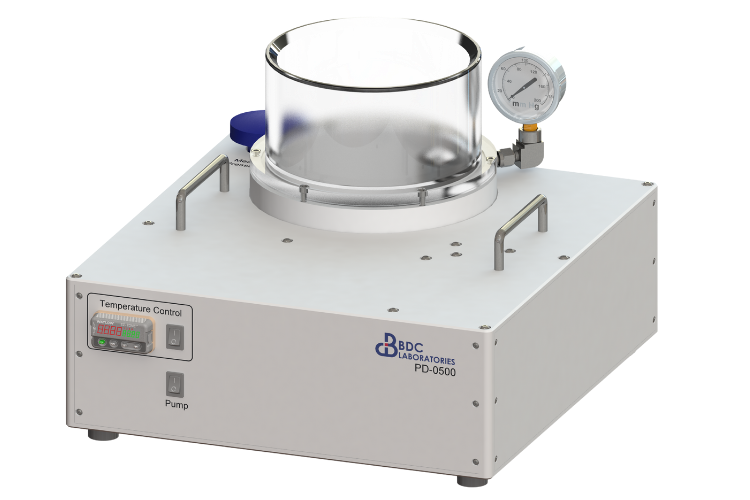

BDC Laboratories’ PD-0500 delivers a compact and complete left- or right-heart pulsatile flow source with built-in heating and system compliance. Easy to set up and operate, the PD-0500 is ideal for driving pulsatile flow networks in cardiovascular, endovascular, and vascular applications.
Key System Features
Application Versatility
Easily integrated with BDC Laboratories’ simulation solutions or other simulated use test systems requiring pulsatile flow for an extensive array of applications including device and delivery system testing, marketing and sales demonstrations, and physician training.
Portability
Portable and quick to set up, with minimal training needed for operation within minutes; can be transported as checked luggage or shipped in a custom hard-shell case (optional).
Specs and Software
- Endovascular Technology Applications (e.g. Stents, Stent Grafts, Vena Cava Filters)
- Frequency: 60 to 90 bpm (preset during manufacturing)
- Test Fluid: Water, Saline, PBS Solution
- Flow Rate:1.5 to 5 L/min (preset in manufacturing or adjusted in the lab)
- Max Pressure: 200 mm Hg
- Temperature: Room to 40 °C
- Self-Priming: Yes
- Regulatory Compliance: Complies with all applicable European Union directives and standards for safety and EMC. CE Marked; RoHS Compliant.
Extend Your System
Optional accessories are available to extend your system’s capabilities. Add-ons can be purchased to support specific applications and configurations.
Simulation Solutions & Silicone Anatomical Models
BDC Laboratories offers a wide range of turn-key simulation solutions and compliant silicone anatomical models. Choose from a library of standard healthy and diseased patient-based anatomies or request models created from your own patient dataset. All silicone vasculature includes BDC Laboratories’ proprietary SLIC™ friction reduction coating, which reduces friction to a clinically relevant level and promotes smooth advancement, tracking, deployment, and retraction of guidewires, catheters, and delivery systems.
Statys® Portable Pressure Monitoring System
BDC Laboratories’ pulse duplicators support our Statys® pressure monitoring software for pressure monitoring, data logging, and support for up to four pressure transducers using integrated data acquisition hardware.
Flow Rate Adjustment
Select from three user-defined flow rate slots (e.g., 2, 3, and 5 L/min) using the drive head to match the needs of your mock circulatory loop. This feature can be preset in manufacturing or adjusted in the lab.
Shipping Case
The customized shipping case for the PD-0500 protects the system with a rugged, fully padded foam interior that is watertight, crushproof, and dustproof. It features an extendable handle and four wheels, and users can check it as airline luggage with little risk of damaging the contents.
Equipment Care Program
Proactive Maintenance for Uninterrupted Operations
Keep your equipment performing at its best with the only maintenance program backed by the experts who built it. This annual service includes maintenance, worn part replacement, optional upgrades, and a final Operational Qualification (OQ) to confirm functionality and performance, completed at our facility.
Why BDC?
A Partner from the Start
From first conversation through final setup, we work closely with your team to deliver the right test systems for your device goals.
Built for Your Timeline
We make it easy to get the equipment you need, when you need it, through expert equipment scoping, timely Factory Acceptance Testing and production, and dependable logistics.
Support That Lasts
We stay involved post-delivery with onboarding, maintenance, and technical support to reduce downtime and help you get the most from your equipment.
