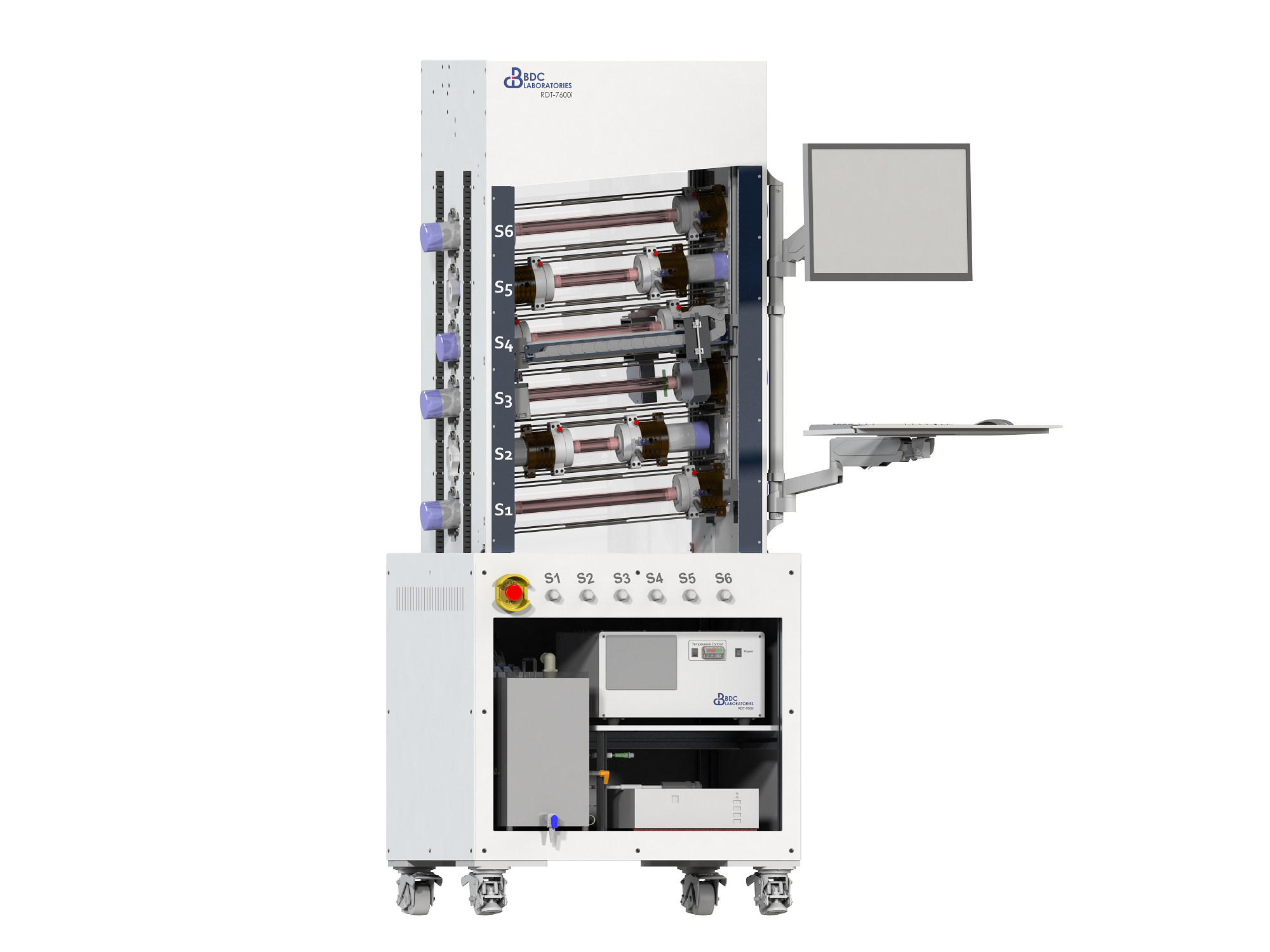

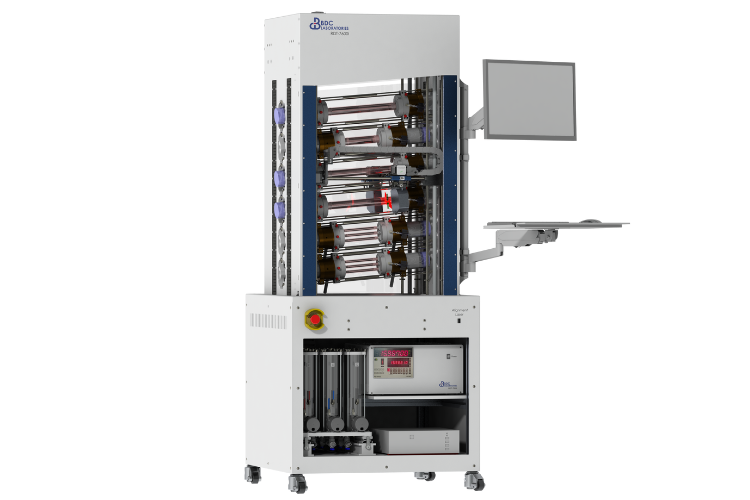

RDT-7600i
Pulsatile Durability System
The RDT-7600i was designed as a true “set it and forget it” pulsatile durability and radial fatigue test system meeting ASTM F2477 and ISO 25539 requirements.
An optical micrometer, mounted on a computer-controlled stage, measures the pulsatile diametric strain at each station. During operation, the micrometer automatically moves to predetermined locations on the test samples to measure and document strain at defined intervals. The RDT-7600i system eliminates the need for operators to manually interface with the system, rotate manifolds, or track diametric strain throughout a 400-million-cycle test.
The RDT-7600i is controlled and monitored by our proprietary Statys® RDTi software, featuring automated strain measurement and station adjustments that eliminate the need for operator interaction, real-time monitoring and recording of all signals, and built-in algorithms for instantaneous strain feedback using ASTM F2477 and ISO 25539 relationships.
Key System Features
Independent Station Control
The first pulsatile fatigue test system to offer independent test stations with adjustable motor spacing, enabling simultaneous evaluation of samples with varying diameters and lengths.
Data Fidelity
Once test conditions are set, the system continuously measures diametric strain and automatically adjusts any out-of-tolerance stations to ensure consistent, accurate test conditions without operator intervention.
Seamless Testing Workflow
Manages all test functions from start to finish, eliminating manual steps and enabling efficient execution of extended durability and fatigue studies.
Space Efficient
As a self-contained test system, it requires a smaller footprint than existing equipment, maximizing the use of valuable laboratory space.
Specs and Software
- Test Sample Diameter: 2.5 mm to 50 mm
- Operating Frequency: 1 Hz to 80 Hz*
- Sample Configuration: Straight, Bifurcated, ‘U’, Angled/Bend, Aneurismal
- Number of Samples: 1 to 18 samples (dependent on test sample diameter)
- Diameter Measurement: Optical micrometer
- Temperature: Room to 50°C
- Regulatory Compliance: Complies with all applicable European Union directives and standards for safety and EMC. CE Marked.
*actual test frequency is dependent upon stent size / configuration
The RDT-7600i is controlled and monitored by our proprietary Statys® RDTi closed-loop control and monitoring test software, featuring:
-
- Automated measurement and documentation of diametric strain, with automated adjustment station parameters eliminates the need for operator interactions throughout an entire 400 million cycle study
- Integrated diametric strain characterization algorithms to facilitate a comprehensive understanding of sample response at accelerated frequencies
- Continual real-time data monitoring & recording of all signals to document an entire study
- Integrated, real-time outer diameter to inner diameter calculations based on both ASTM F2477 and ISO 25539 relationships for instantaneous strain feedback
- Real-time alarms and safeguards to protect both the system and test samples
- User-focused software environment to facilitate ease of system operation and monitoring
Extend Your System
Optional accessories are available to extend your system’s capabilities. Add-ons can be purchased to support specific applications and configurations.
Silicone Mock Vessels
BDC Laboratories offers certified silicone mock vessels in straight, curved, bifurcated, or customer-defined configurations for mounting stents, stent grafts, transcatheter heart valve frames, and other endovascular implants. We fabricate and certify mock vessels to a specified diametric compliance or wall thickness and perform certification at various pulse pressures to meet your specific requirements (e.g., 160 mmHg/80 mmHg).
Test Station Barbs
Barb connectors ensure the best connection between the vessel and the test system. Selection depends on silicone mock vessel diameter and geometry.
Equipment Care Program
Proactive Maintenance for Uninterrupted Operations
Why BDC?
A Partner from the Start
From first conversation through final setup, we work closely with your team to deliver the right test systems for your device goals.
Built for Your Timeline
We make it easy to get the equipment you need, when you need it, through expert equipment scoping, timely Factory Acceptance Testing and production, and dependable logistics.
Support That Lasts
We stay involved post-delivery with onboarding, maintenance, and technical support to reduce downtime and help you get the most from your equipment.
Explore More

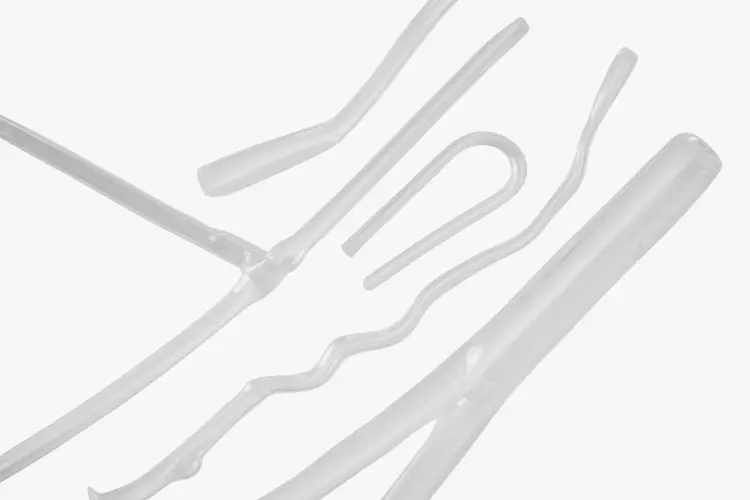

Non-Anatomical Silicone Vessels
